Harvest Right Medium Scientific Freeze Dryer

Due to high demand, the Harvest Right Medium Scientific Freeze Dryer production time could take 2-3 weeks sooner, if possible. If you choose to complete an order now, it will be sent to our warehouse immediately, ensuring that your order will be fulfilled as soon as possible.

Harvest Right’s lyophilizer/freeze dryer is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the vacuum pump in conjunction with ascending controlled temperature and time settings.

Features:

• Convenience of 5-tray dryer in a table top unit.
• Full-color, touch-screen display.
• 2 gallons ice condensing capacity.
• Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
• Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
• Control of the ultimate final freeze temperature.
• Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
• Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
• The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
• The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
• Provides ongoing, real-time display of pressure and temperature.

Specifications:

• Item: Freeze Dryer/Lyophilizer

• Style: Bench/Table Top
• Holding Capacity: 2 Gallons of Sublimated Ice
• Min. Temp. Rating: Collector Cools to -46ºF
• Collector Material: Stainless Steel
• Drying Chamber: Included (Stainless Steel)
• Purge Valve: Included
• Voltage: 115 VAC
• AMPS: 15 A
• Dimensions: 30″ high x 25″ deep x 20″ wide
• Exterior: Stainless Steel or Powder Coated Aluminum
• Electronics: Includes a Full Color Touch Screen (4.3″ diagonal)
• Operation: Manual / Automated

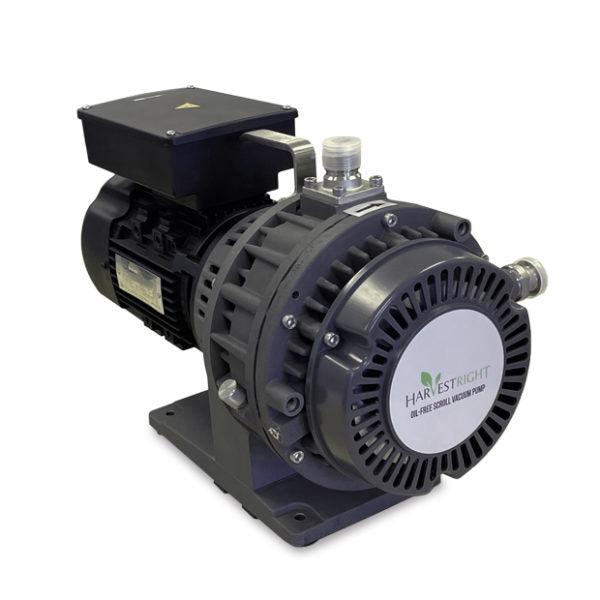

• Vacuum Pump: Oil-Free Scroll Vacuum Pump
• Shelf Unit Has shelves for 5 trays

Included:

• Commercial Grade Oil-Free Vacuum Pump
• Five (5) Stainless Steel Trays
• Owner’s Manual
• Power Cord (110 Volt)

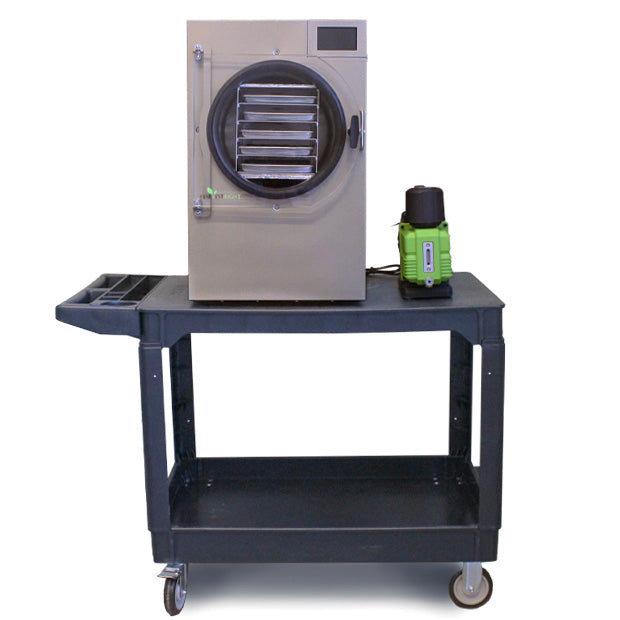

Freeze Dryer Cart

• Sturdy
• Lightweight
• Easy to maneuver tight spaces
• Perfect for home, office, or warehouse use
